I migrated my self-hosted services from one Proxmox node to another, and it was shockingly easy

Thanks to its astonishingly low minimal system requirements and built-in support for LXCs, Proxmox is one of the best virtualization platforms for repurposing old machines into robust self-hosting workstations. In fact, I’ve armed a budget-friendly NAS I received a few days ago with Proxmox and plan to use it for hosting a couple of experimental containers. But since I’ve already got an old laptop serving as an LXC-hosting PVE node, I figured I could try migrating some virtual guests from the dinosaur machine to my shiny new NAS.

Turns out, there are a multitude of ways to move containers and virtual machines between guests. Having tinkered with many of them over the last few days, here are some perks and quirks I encountered in each method.

A Proxmox cluster can help

But I wouldn’t go for this solution

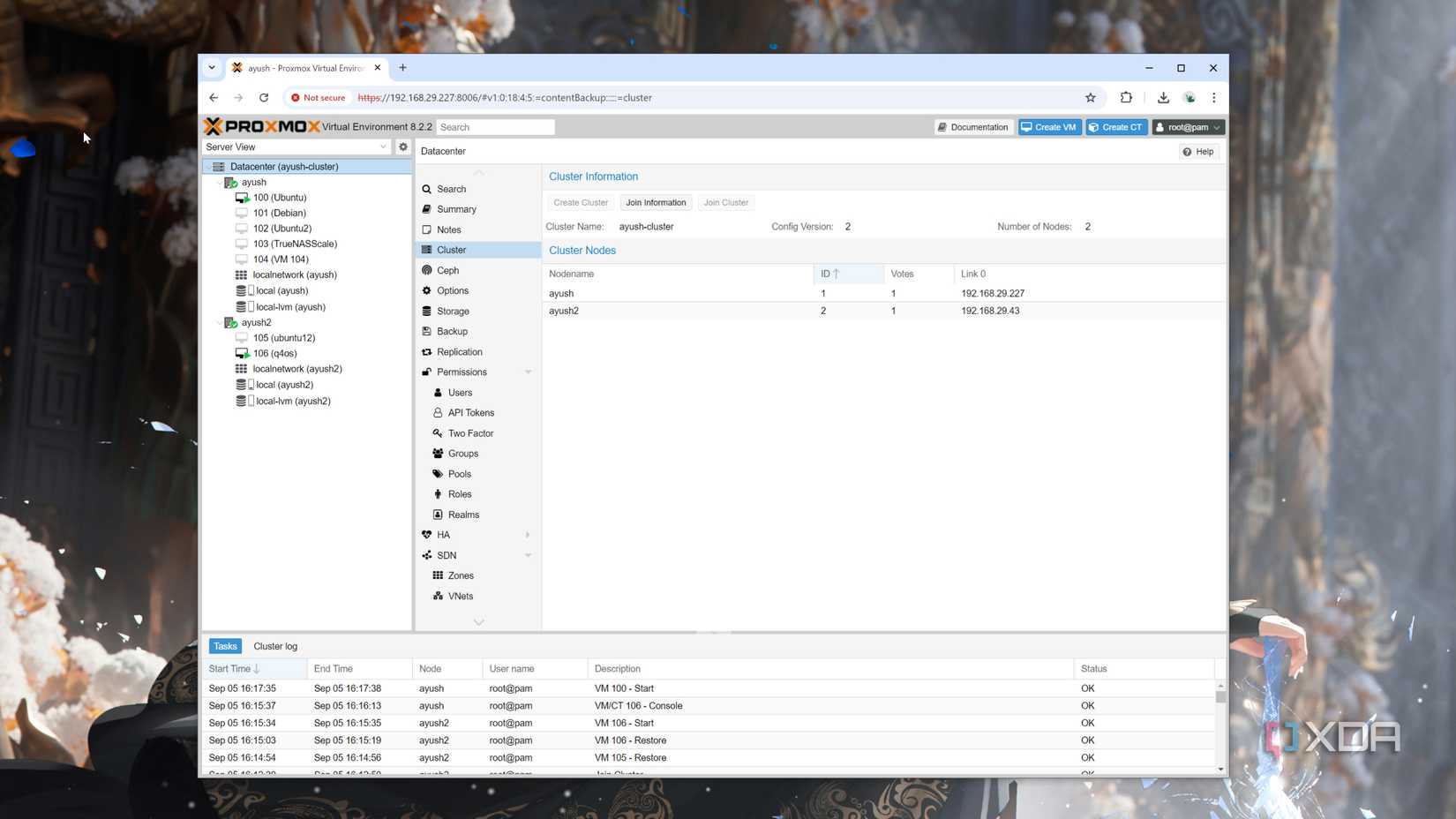

The native support for cluster setups is one of the many perks of Proxmox, and there are many advantages to connecting a couple of PVE nodes in a cluster. This includes the ability to seamlessly migrate virtual guests between the workstations as you see fit. Even if you don’t have a shared storage pool for a high-availability setup, migrating services between cluster nodes is fairly simple.

Once you’ve connected the two nodes inside a cluster, you can right-click on your preferred virtual guest and press the Migrate option. Then, you’ll want to set the right Target Node (in this case, the PVE workstation where you wish to transfer your VMs and LXCs) and hit the Migrate button. Assuming you have the right network bridge and storage pools configured on both nodes and there aren’t any conflicts in the CIDs or VIDs, the migration process will begin.

For folks who already use clusters, this method works like a charm. But if you’re not interested in deploying a cluster, I wouldn’t recommend doing so just to migrate virtual guests. For starters, you’ll have a hard time maintaining a quorum with just two PVE machines, and you won’t be able to access either node if one of them goes down. Breaking a cluster and removing nodes is also a royal pain. Since my main motive was to transfer some LXCs to my NAS, it’s clear that deploying a cluster wouldn’t quite cut it.

You can also migrate virtual guests using backups

Proxmox Backup Server comes in handy here

Backing up virtual guests and restoring them is a neat way to perform cold migrations, where the VMs/LXCs remain inoperational for the entire duration of the transfer process. While you can do so using configuration files and FTP clients, the Proxmox Backup Server makes this process a cinch.

Assuming you’ve already got a PBS instance, you’ll want to connect it with both the sender and receiver nodes. After that, you’ll want to create a Backup Task encompassing all the containers and virtual machines on the old node via the Backup menu within the Datacenter tab. Once the backup process is complete, you can switch to the PBS storage tab on your target node. You’ll find a list of the snapshots created from the sender node inside the Backup tab, and you can add them to the current PVE workstation by pressing the Restore option.

If you’ve already got Proxmox Backup Server set up on a bare-metal machine, this is one of the best methods for migrating virtual guests. Rather than worrying about ID conflicts or missing bridges/storage pools, this method lets you choose the VM/LXC IDs, storage pool, privilege level, and other settings when restoring the virtual guests.

But for folks who only have two nodes, you’ll probably end up running PBS in a virtualized setup. Depending on the number of virtual guests in your arsenal, you may need extra free storage on the node where you plan to host the PBS server.

Proxmox Datacenter Manager is perfect for the task

Even though the tool is still in its alpha stage

Besides PBS, Proxmox Datacenter Manager is another first-party tool for PVE workstations. Except, it’s designed to help you manage multiple Proxmox instances instead of snapshots. Although it’s still very much a work-in-progress, the Proxmox Datacenter Manager has a couple of neat features, including the ability to migrate virtual machines and containers between the nodes paired with the tool.

To transfer your VMs and LXCs, you’ll want to start by selecting the Migrate button inside the tab dedicated to the Source node. Inside the pop-up window, you’ll have to pick the Target Remote (which is the name of the other node) and choose the Target Storage and Target Network options. You also have the ability to modify the ID of the virtual guest and can even opt to delete the original instance on the source PVE rig.

If you don’t have enough space for a virtualized Proxmox Backup Server, deploying the Datacenter Manager is the next best solution. It doesn’t require a lot of disk space and is a lot quicker than waiting for PBS to create the snapshots and then for the target PVE node to restore them.
